COMPACT
Pulsar II 3.6m
12 ft · Mid-size industrial spaces
DiameterØ 3.0m
Coverageup to 600 m²
Power0.75 kW
Airflow~14,000 m³/h
IPIP55
Noise< 45 dB(A)
Coolibri · HVLS Series · Vietnam
High Volume · Low Speed · Maximum Coverage
Pulsar II Series
Industrial-grade HVLS ceiling fans engineered for warehouses, factories, logistics hubs, and large commercial spaces — delivering massive airflow at whisper-quiet speeds.
Built for Vietnam's
Industry
The Coolibri Pulsar II Series is a premium line of HVLS (High Volume Low Speed) ceiling fans designed to conquer the thermal challenges of large industrial and commercial spaces across Vietnam's tropical climate.With blade spans ranging from 3.6m to 6.5m, the Pulsar II moves thousands of cubic meters of air per minute at low rotational speeds — creating a gentle, wide-coverage breeze that dramatically reduces perceived temperatures without the energy costs of traditional air conditioning.Engineered with a PMSM (Permanent Magnet Synchronous Motor) and aerofoil-profile blades, every Pulsar II model is built to IP55 standards for year-round reliability in Vietnam's humid, dusty industrial environments.
What Is an
HVLS Fan?
High Volume Low Speed fans are a class of large-diameter ceiling fans that prioritize air mass flow over rotational speed — making them fundamentally different from conventional commercial fans.
High Volume
A single 7.3m Pulsar II moves over 30,000 m³/hr of air — equivalent to dozens of conventional fans running simultaneously. The large blade diameter naturally captures and displaces enormous air volumes each revolution.
Low Speed
Pulsar II fans rotate at just 50–80 RPM — far below the 300–1000+ RPM of conventional fans. This slow, smooth rotation produces a gentle, naturally-feeling breeze rather than harsh, disruptive drafts.
Wide Coverage

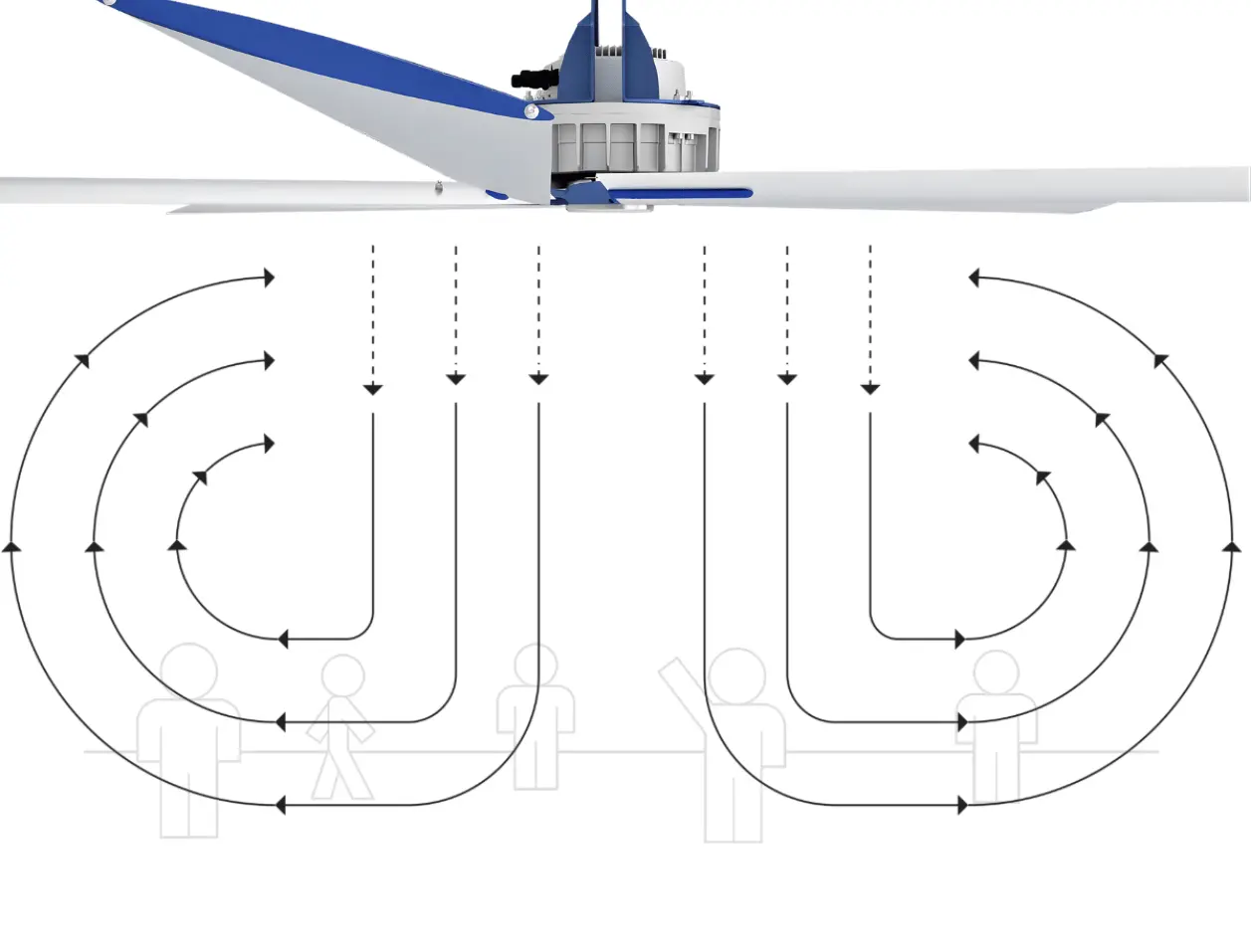

The Venturi effect created by HVLS blades pulls air horizontally across the floor and up the walls, creating a full-room circulation column. One fan covers what would require 15–30 conventional fans to achieve.
Italian HVLS Range
Coolibri Pulsar II Series
Four sizes — from mid-size production facilities to the largest logistics operations. IE4 direct-drive motor, noise level below 45 dB.
Designed & manufactured in Italy · COOLIBRIPOPULAR
Pulsar II 4.3m
14 ft · Versatile for logistics & production
DiameterØ 4.3m
Coverageup to 800 m²
Power1.1 kW
Airflow~20,000 m³/h
IPIP55
Noise< 45 dB(A)
HIGH-BAY
Pulsar II 5.0m
16 ft · High-bay production facilities
DiameterØ 5.0m
Coverageup to 1,200 m²
Power1.5 kW
Airflow~26,000 m³/h
IPIP55
Noise< 45 dB(A)
FLAGSHIP
Pulsar II 6.5m
22 ft · Maximum coverage
DiameterØ 6.5m
Coverageup to 1,800 m²
Power2.2 kW
Airflow~32,000 m³/h
IPIP55
Noise< 45 dB(A)
Industrial & Commercial
Applications
The Pulsar II Series is optimized for any large-span environment where thermal comfort, air quality, and energy efficiency are priorities.

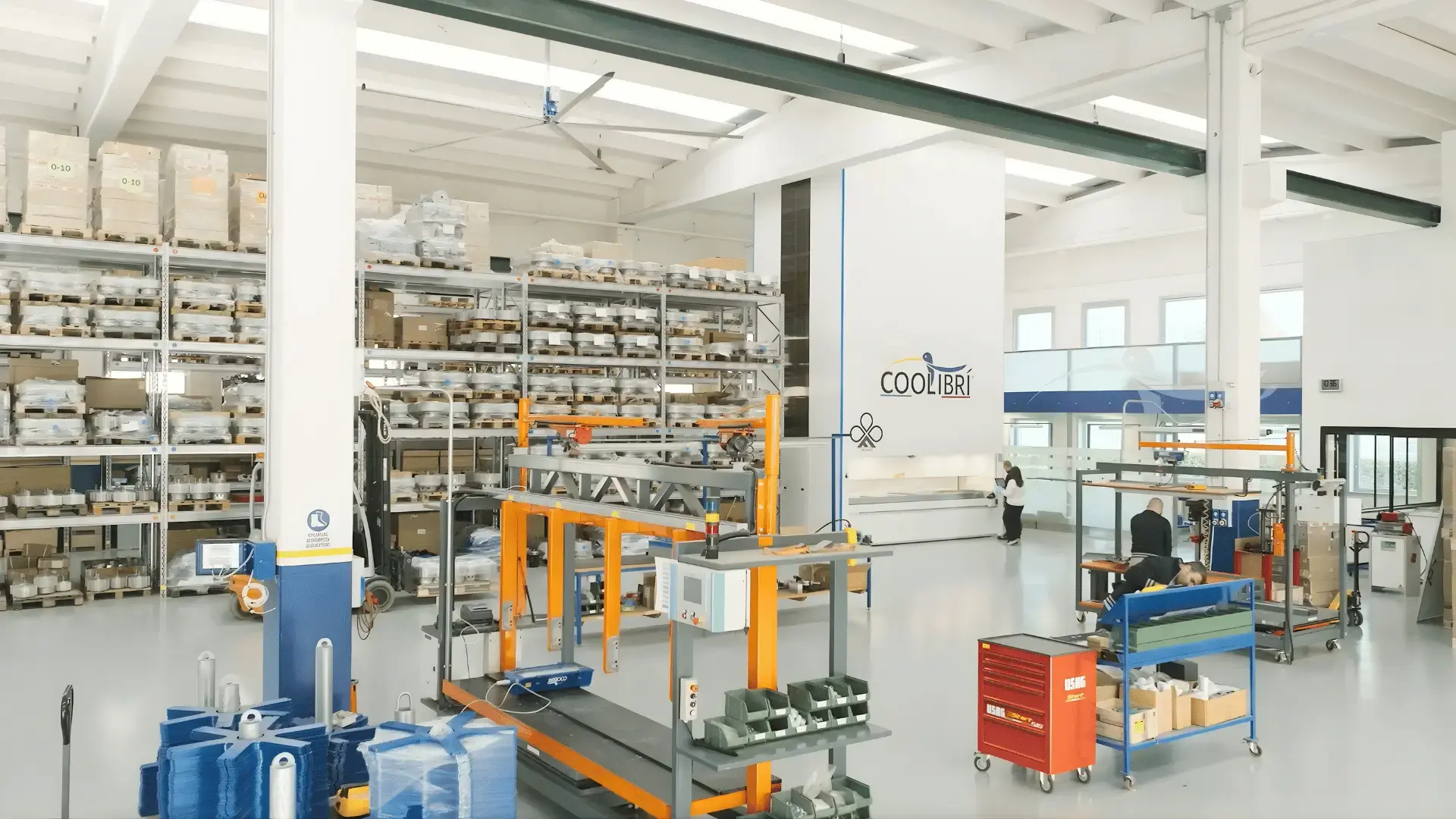

Warehouses & Logistics
Large distribution centers and 3PL facilities across Vietnam's industrial zones benefit enormously from Pulsar II coverage. Workers in pick-and-pack areas stay productive in comfortable conditions even during peak summer months.
Manufacturing Plants
Assembly lines, fabrication floors, and light manufacturing facilities see measurable productivity gains when heat stress is eliminated. The Pulsar II's low noise floor means the fan doesn't interfere with communication or equipment sensors.
Cold Storage & Food Processing
In refrigerated environments, the Pulsar II destratifies cold air — pushing cold air off the ceiling and back to floor level where it's needed. This reduces compressor run-time and extends cold chain integrity.
Open-Sided & Semi-Outdoor
Loading docks, covered outdoor markets, event canopies, and airport walkways — environments open to ambient weather — benefit from IP55-rated Pulsar II units that handle humidity, dust, and corrosive air reliably.
Covered Sports Facilities
Indoor stadiums, sports halls, swimming pool facilities, and multi-purpose arenas use the Pulsar II to maintain consistent air circulation for athletes and spectators without drafts that affect sports performance.
Commercial & Retail
High-end retail showrooms, car dealerships, convention centers, and large hospitality venues use the Pulsar II's architectural presence and silent operation to improve guest comfort without visible HVAC infrastructure.
Engineering Detail
Core Technology
Drivetrain

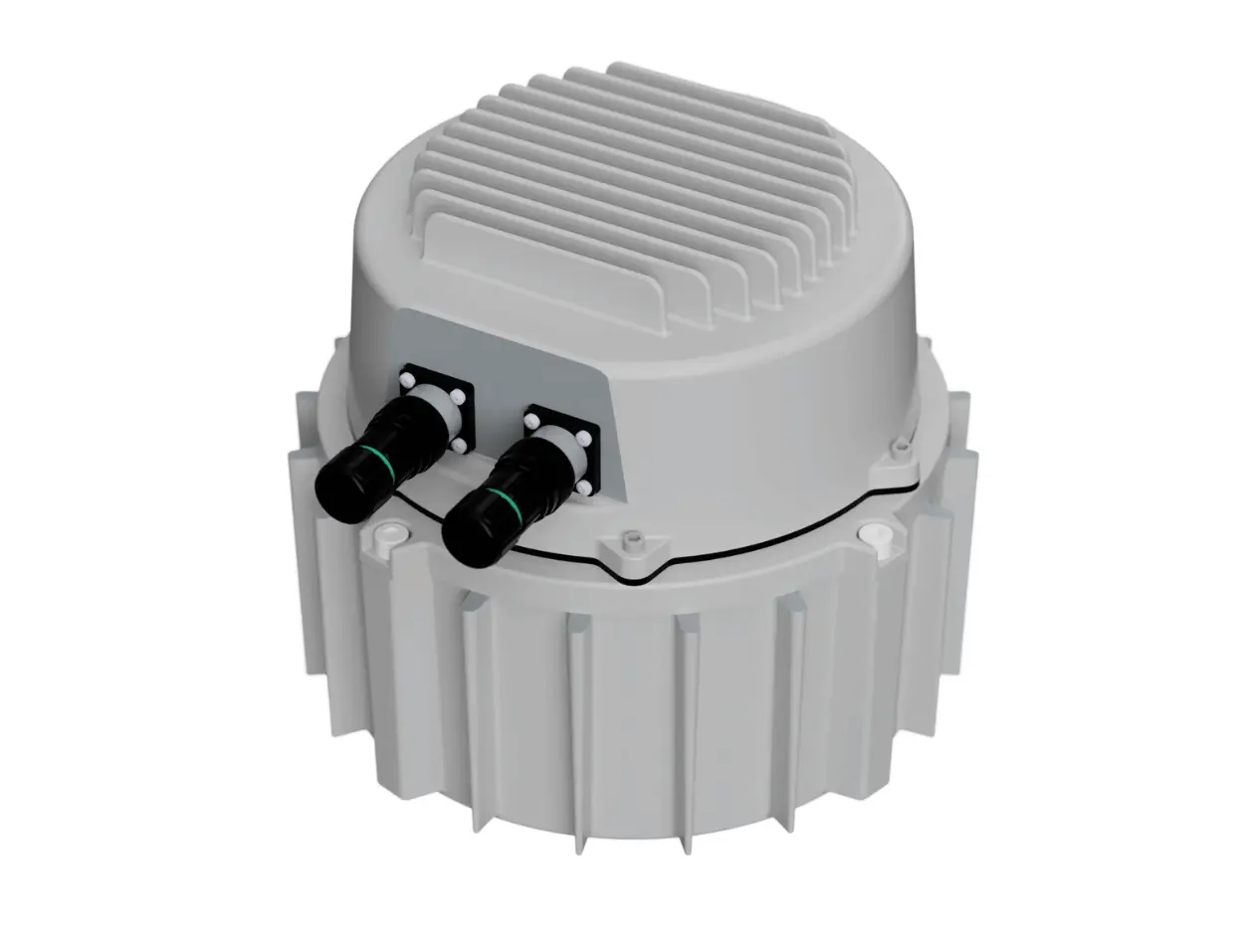

PMSM Direct Drive Motor
The Pulsar II uses a Permanent Magnet Synchronous Motor (PMSM) with direct-drive transmission — eliminating gearboxes, belts, and intermediate shafts. This means zero wear components, near-zero maintenance, and peak efficiency at all speed ranges. The motor is integrated into the hub assembly, minimizing weight distribution asymmetry.
Aerodynamics
Aerofoil-Profile Blades
Each blade is profiled with a NACA-standard aerofoil cross-section — the same engineering basis used in aircraft wings. This maximizes the lift-to-drag ratio at low RPM, converting motor torque into airflow more efficiently than flat or cambered blades used in conventional fans.

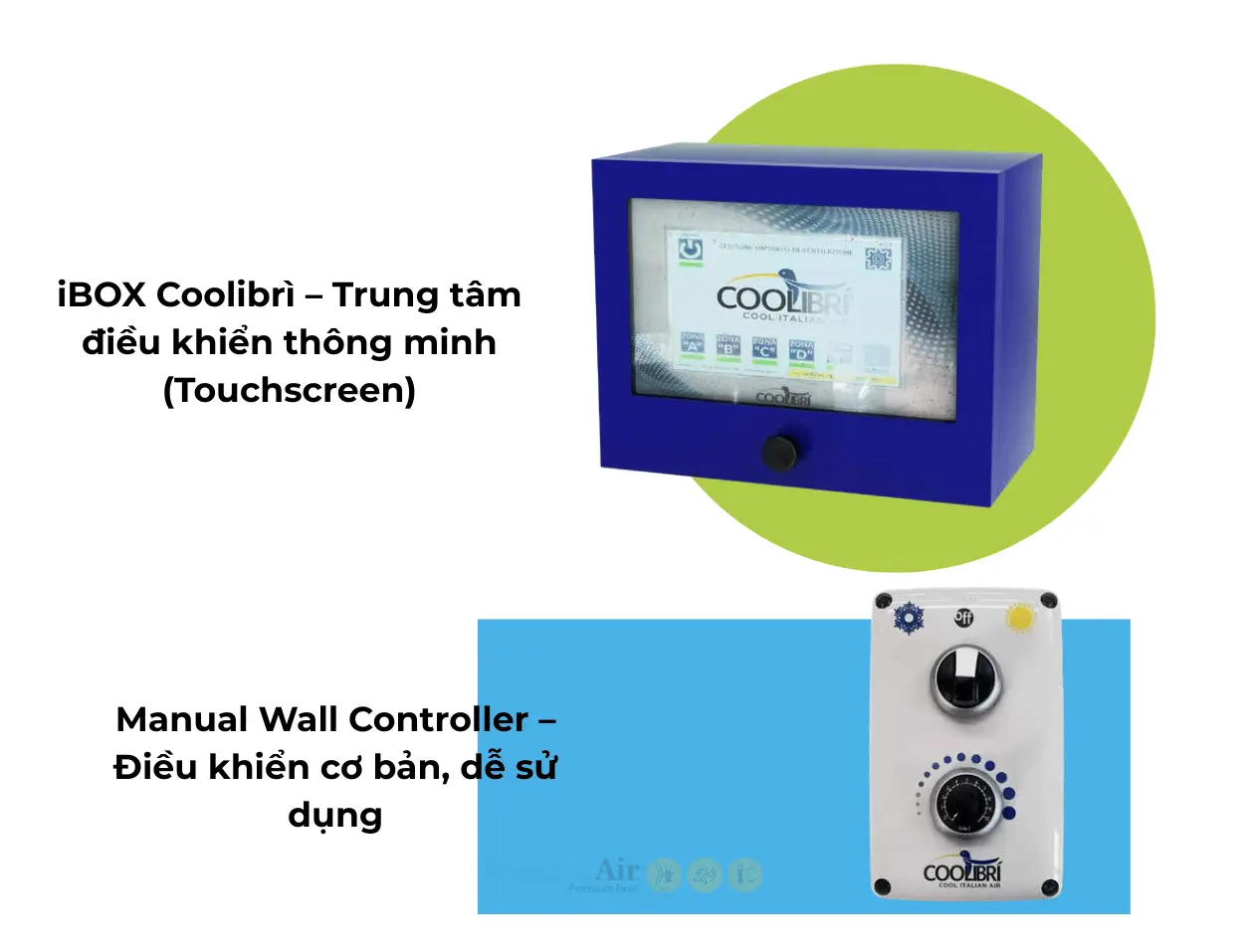

Control System
Variable Frequency Drive (VFD)
All Pulsar II models include a VFD controller allowing infinite speed adjustment from 0 to maximum RPM. The VFD enables soft-start (preventing electrical surge), progressive acceleration profiling, and integration with BMS (Building Management Systems), SCADA platforms, and IoT occupancy sensors for automated speed control.
Construction
Corrosion-Resistant Alloy
Blades and hub components are fabricated from high-strength aluminium alloy with an electrostatic powder-coat finish rated for IP55. This specification ensures long service life in Vietnam's coastal, tropical, and industrial environments — including chemical processing facilities with mild airborne corrosives.
Where It Works
Built For Every
Industrial Space
Hamilton Air HVLS fans are deployed across Vietnam's most demanding industrial and commercial environments.

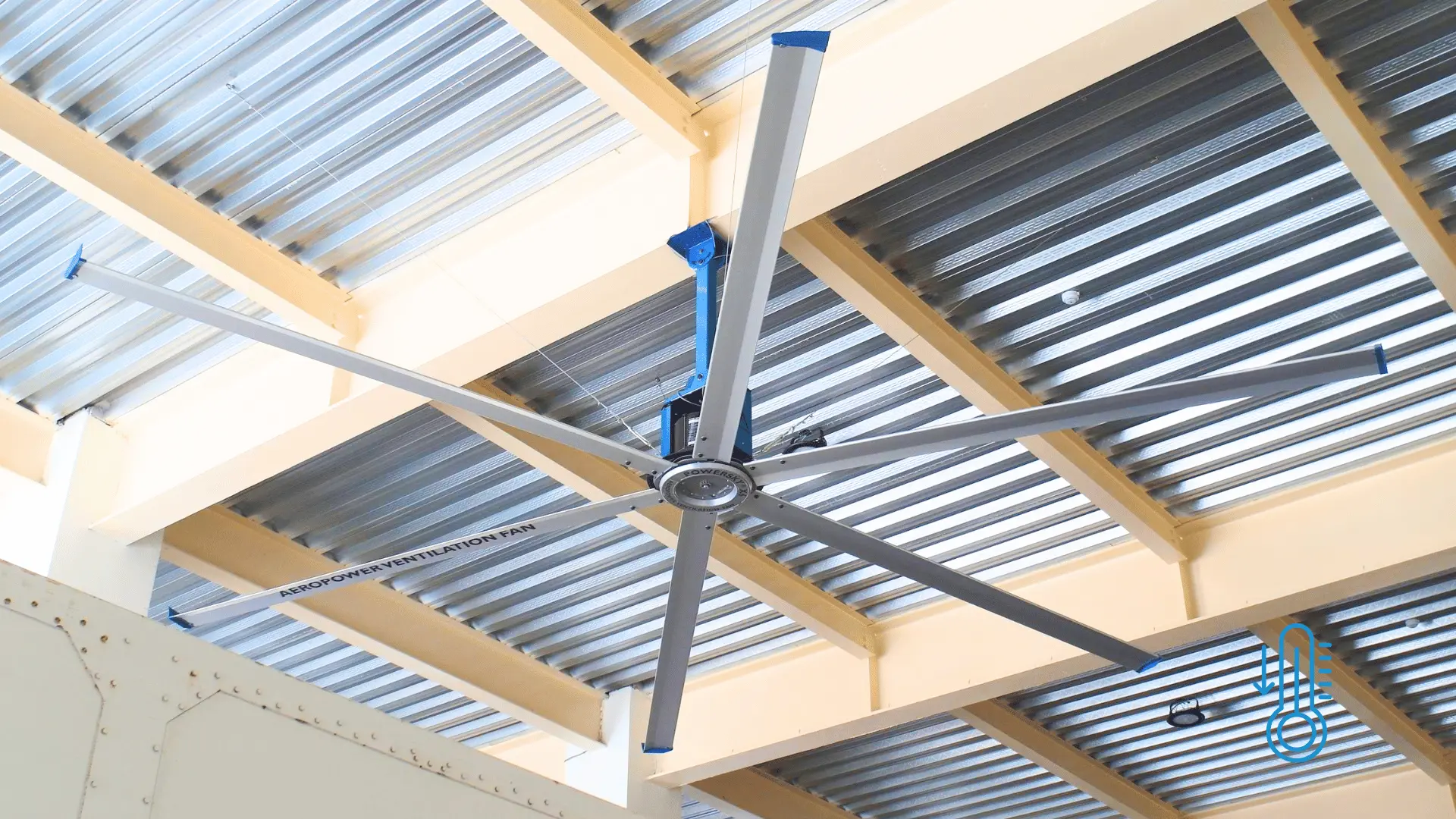

Manufacturing Factory
Continuous airflow maintains operator comfort at production lines. Reduces heat stress incidents and improves productivity in high-temperature manufacturing environments.

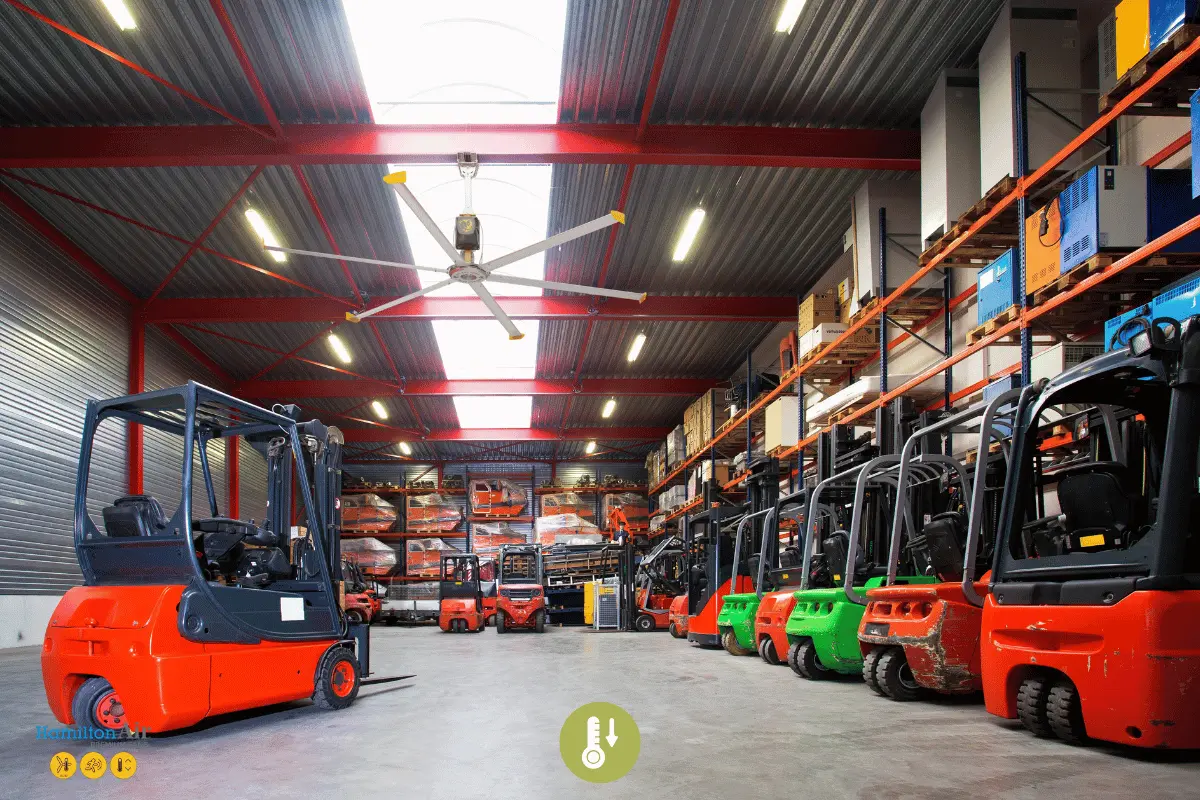

Logistics Warehouse
Single HVLS fan covers entire warehouse bay. Eliminates condensation, reduces pallet damage, and maintains consistent temperature for goods requiring controlled storage conditions.
Automotive Showroom
Premium airflow without visual intrusion. Large-diameter HVLS fans provide imperceptible, silent air movement that enhances showroom comfort without competing with the vehicles on display.
Restaurant & Café
Architectural ceiling fans with HVLS-class airflow. Pandora V150e and V180e series deliver restaurant-grade comfort in open dining spaces without the industrial aesthetic.

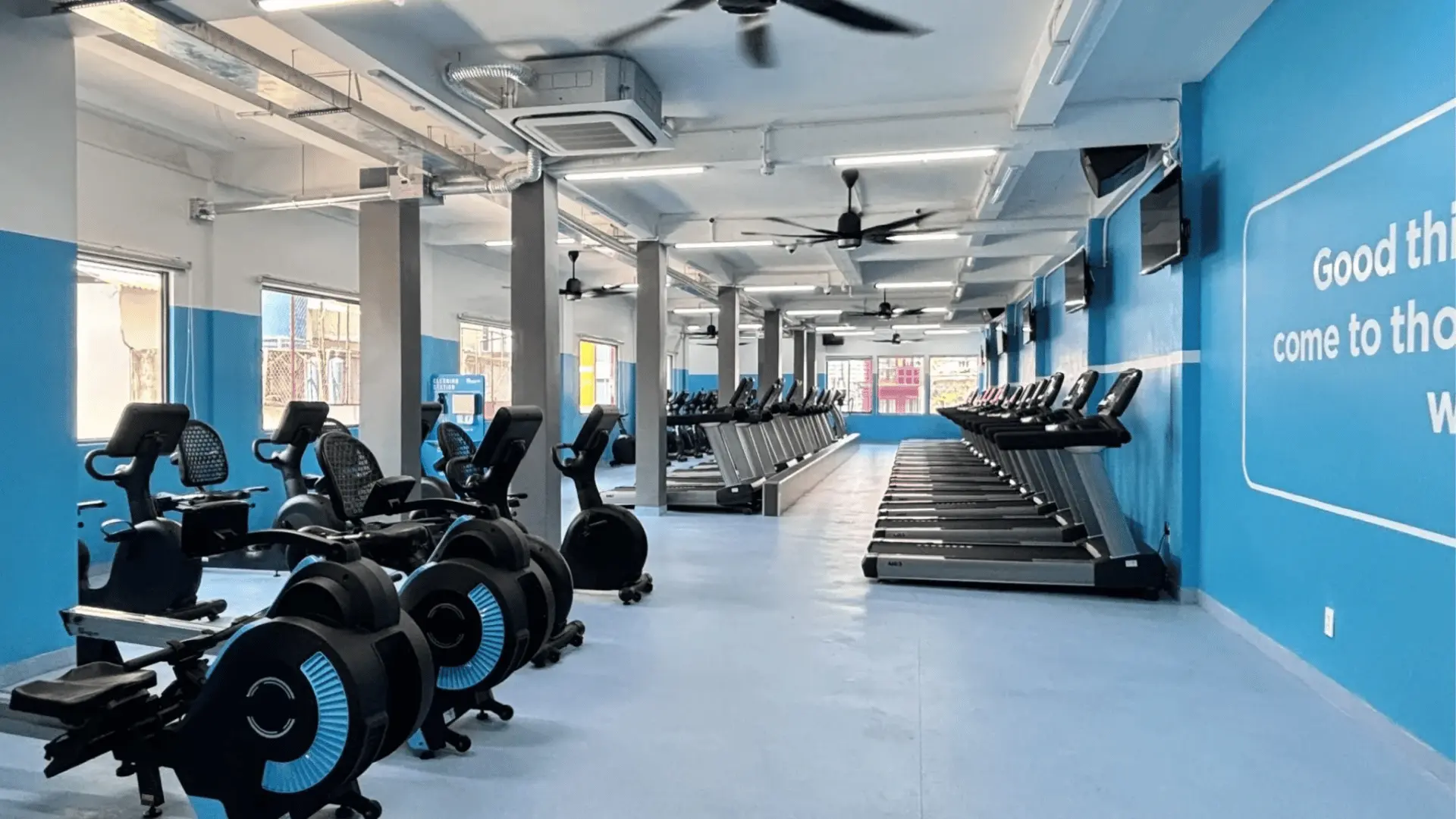

Sports & Fitness Venues
High-volume low-noise airflow for arenas, gyms, and indoor courts. IP55-rated for high-humidity sports halls where sweat and cleaning water are constant.
Resort & Hotel
IP65/IP68 coastal-rated fans for beachside resorts, pool pavilions, and open-air lobby spaces. Salt-air resistant motor housing designed for Vietnam's coastal climate.
Figuring out your airflow needs can be complex—especially on your own. Get in touch and let our airflow experts guide the way.
